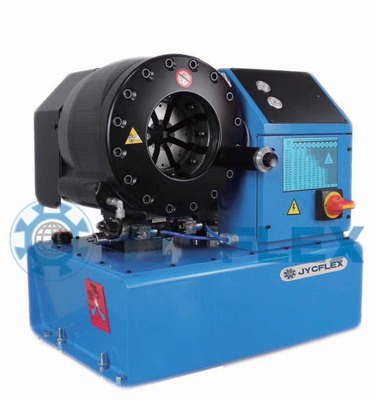

Competitive High Tech Crimp Hose Press High Wire Rope Stamping Hydraulic Hose Crimping Machine For Sale

1.0 Sets
MOQ
Competitive High Tech Crimp Hose Press High Wire Rope Stamping Hydraulic Hose Crimping Machine For Sale
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Condition: New
Voltage: 220V/380V
Dimension(L*W*H): 650*470*620mm
Weight: 290KG, 290KG
Warranty: 1 Year
Applicable Industries: Machinery Repair Shops, Construction works , Energy & Mining
Name: hydraulic hose crimper repairs and maintenance
Model: JYC-P32
Color: Blue
Crimping range: 6-51mm
Application: Crimp Hose
Type: automatic
Crimping force: 320Ton
SYSTEM PRESSURE: 31.5mpa
Keywords: hydraulic hose crimper repairs and maintenance
Power: 3KW/4KW
After-sales Service Provided: Free spare parts, Online support, Video technical support
Certificering: CE ISO9001
Basis informatie
Certificering: CE ISO9001
Model Number: JYC-P32
Betalen & Verzenden Algemene voorwaarden
Supply Ability: 100 Set/Sets per Month for Wire Rope Swaging Machine
Productomschrijving
MACHINE  Description

Hydraulic hose crimping machine Application


Due to less wearing parts ,JYC-P32 Medel has the least down time.

The control panel has been re-designed with soft touch button commands for all the operations.

It is most user-friendly, safe & simple in operation.

SPECIFICATIONS FOR HYDRAULIC HOSE CRIMPING MACHINE
Production name
hose crimping machine
Machine model
JYC-P32
Machine type
hydraulic crimping tool
 Application
crimping hose
Crimping range
6-51mm(1/4--2 inch)
System pressure
31.5Mpa
Crimping force
3200kN
Operation mode
electrical
Dies set
13 sets
Die length
75mm
Dimension
650*470*620mm
Weight
290KG
Voltage
220V/380V
Power
3KW/4KW
Rated Flow
10ml/r
Prodection Class
IP54

P32 Hose Crimping Machine Features

High Efficiency                                            High Precision                                            Good Product Consistency

Low labor Intensity                                   Good Management                                     Simple In Operation

Detailed Images

Machine Parts

Name: Crimping machine head


Front housing cover,cylinder and piston rod use material with CR,improve the oil cylinder and piston rod fatigue resistance.

Machine Parts

Name: Crimping machine die sets

High quality

reliable

durable

High performance to price ratio

Professional

Machine Parts

Name: Oil seal kits

It will drive parts in the need to lubricate the parts and components of the output of the isolation, not to allow the leakage of lubricating oil.

Crimping Machine Application:


Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

*24x7 service

* Training how to install and use the machine

* Engineers available to service machinery overseas.

Certifications
Packing & Delivery
Packaging
Size
650(L) * 470 (W) * 620(H)
Weight
290KG



Packaging Details
Covering the machine with films,and package the machine with the starndard export wooden case.
The normal package is wooden box(Size: 670*490*640).
Before delivery,we will make sure the package is in good condition.
Packaging
Size
670 (L) * 490(W) * 640 (H)
Weight
300KG



Packaging Details
The normal package is wooden box(Size: 670*490*640).We could custom package according to customer request.We will do every effort to make sure the machine protected to deliver to our customer's hands.
